PATOYS | i91-16-00 — 12V Multifunctional PCB Central Control Panel for Children's Electric Ride-On Car

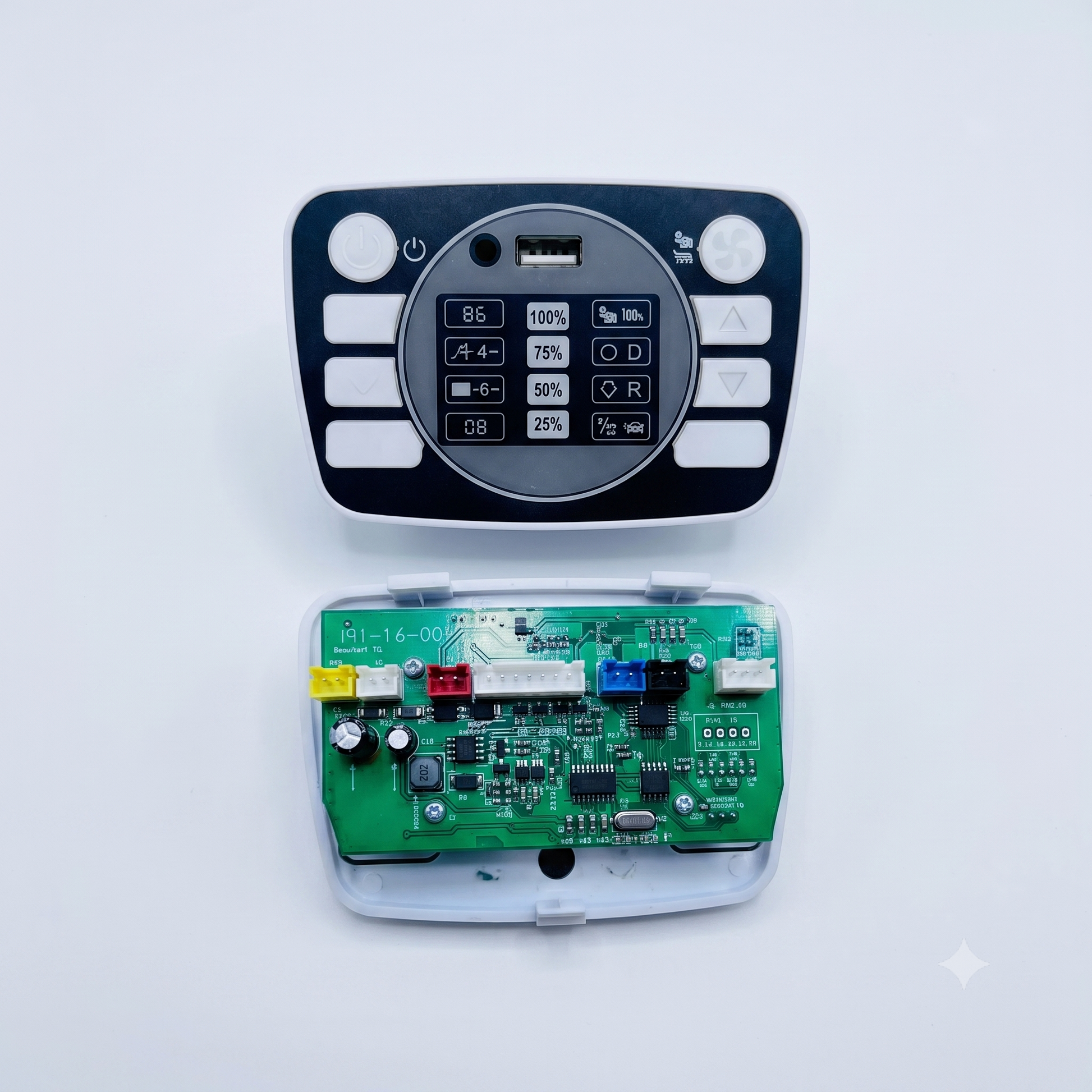

The i91-16-00 is a fully integrated 12V multifunctional central control panel designed for children's electric ride-on cars. It combines a front overlay membrane keypad with a green multilayer PCB motherboard, providing complete electronic control over motor drive, speed regulation, audio playback, and power management in a single compact unit.

🔌 Electrical Specifications

• Model Number: i91-16-00
• Operating Voltage: 12V DC
• PCB Type: Multilayer Green FR4 PCB
• Connector Types: JST multi-pin connectors (Yellow, Red, Blue, White)
• Crystal Oscillator: Yes — for stable clock signal to microcontroller
• Onboard IC: Microcontroller + dedicated audio decoder IC
• Potentiometer: 1x onboard (volume / speed trim adjustment)
• SMD Components: Resistors, capacitors, diodes — full SMD layout

🎛️ Front Panel Controls (Membrane Overlay)

• Power Button (⏻): Main ON/OFF switch
• USB Port: For MP3 audio playback via USB drive
• Horn Button: Dedicated sound/horn trigger
• Speed Control: 4-level speed selector — 25% / 50% / 75% / 100%
• Gear Selector: Multiple gear modes (86, A4, -6-, 08)
• Drive Mode Buttons: O D (Drive) / ◇ R (Reverse)
• Direction Buttons: Forward (▲) / Reverse (▼)
• Battery Indicator: Visual battery level display icon

🔗 PCB Connector Pinout (Observed)

• Yellow JST Connector: Motor / Drive output
• Red JST Connector: Battery / Power input
• Blue JST Connector: Secondary motor or lighting output
• White JST Multi-pin Connector: Speaker / Audio output
• 4-pin Debug Header: Programming / firmware interface pads

⚙️ Functions Supported

• Motor speed control (PWM-based, 4 levels)
• Forward / Reverse direction switching
• MP3 audio playback (USB input)
• Horn / sound effect trigger
• Battery level monitoring
• Gear mode selection
• LED lighting control (via connector)

📦 Compatibility

• Compatible with most 12V children's electric ride-on cars
• Suitable as a direct replacement for damaged or non-functional control panels
• Verify connector pinout and voltage rating before installation

🔗 Related Products at PATOYS

Looking for more spare parts? Explore our complete range:

• 🔧 Controller / Motherboard Collection — All PCB control panels for kids ride-on cars
• 📦 Replacement Spare Parts Collection — Motors, batteries, chargers, tyres & more

⚠️ Important Information

• No Return / No Replacement — Please verify compatibility before ordering
• Country of Origin: China
• Sold by: PATOYS (Seller, not manufacturer)
• Installation requires basic electronics knowledge or professional assistance
